Bend fixtures are used with universal testing machines in order to determine the flexural properties, including flexural (bend) strength and flexural strain, of materials. ADMET bend fixtures are configured for 3-point and 4-point bend testing and are available in a variety of force capacities, support types, and span lengths.
Model selection is often based on the size of the test specimen, expected forces, and the test method followed. Contact us to discuss your testing needs and we’ll help you find the right bend fixture for your application. Read more about bend testing and equipment in our Bend Testing Equipment Guide.
-
FF-2.5/10X Bend Fixtures with Interchangeable Rollers
FF-2.5X are Aluminum bend fixtures up to 2.5kN capacity. FF-10X bend fixtures are Steel bend fixtures up to 10kN capacity. These fixtures come with 150mm or 300mm support span with interchangeable rollers. Roller radii options include 0.5, 1, 1.5, 2, 3, 3.2, 4, 5, and 10mm. Four-point and three-point bend configurations are available.
Testing Standards: ASTM B312 | ASTM D790 | ASTM D2990 | ASTM D6272 | ASTM D7264 | ASTM E1820 | ISO 14130
-
FF-2.5/10T Bend Fixtures with Hardened Supports
FF-2.5T are Aluminum bend fixtures up to 2.5kN capacity. FF-10T bend fixtures are Steel bend fixtures up to 10kN capacity. These fixtures come with 150mm or 300mm support span with hardened supports. Standard support radii options include 0.5, 1, 1.5, 2, 3, 3.2, 4, 5, and 10mm. Four-point and three-point bend configurations are available.
Testing Standards: ASTM D790 | ASTM D6272 | ASTM D7264 | ASTM F382 | ISO 14130
-

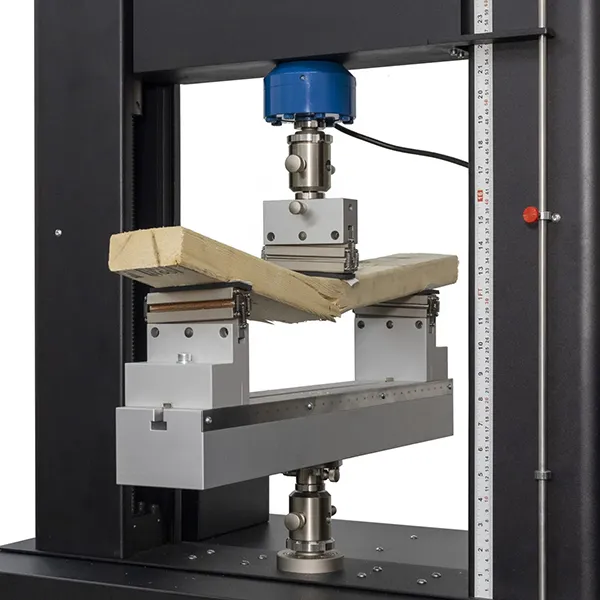

FF-50/100T High-Capacity Bend Fixtures
FF-50T is the 50kN Aluminum bend fixture and the FF-100T is the 100kN capacity Steel version. These high-capacity bend fixtures are supplied with 10mm, 20mm, and 30mm diameter rollers. A variety of support span options are available including: 360, 500, 600, 700, 800, 900, 1000, 1100, 1200, and 1300mm.
Testing Standards: ASTM C99 | ASTM C203 | ASTM C348 | ASTM C393| ASTM C947 | ASTM D7249 | ASTM E190 | ASTM E290 | ISO14125
-
FF-T-ASTM C158 Bend Fixture
The bend fixture designed per ASTM C158 is a four-point bend fixture with moveable and articulating rollers for testing glass specimens. The lower support bar is 300mm long and the upper support bar is 200mm. For other configuration options, contact ADMET.
Testing Standard: ASTM C158
-
FF-T-ASTM C1161 Bend Fixture
ADMET offers all testing configurations with the corresponding support spans and roller diameters for ASTM C1161 ceramic flexural testing. FF-T-ASTM C1161 bend fixtures can be ordered for 3-point bend loading, 4-point bend loading, or both. Rollers are fully-articulating and free-to-move as described by the standard.
Testing Standards: ASTM C1161| ISO 843-1 | ISO 14704
-
FF-T-ASTM C1609 High Capacity Bend Fixture & Assembly
ADMET is one of a select few of testing machine manufacturers that offers equipment to perform the excruciatingly demanding ASTM C1609 tests. The Standards Committee has recently updated the requirements for the bend fixture used in ASTM C1609 testing. Changes to the ASTM C1609 three-point bend fixture include:
— Loading nose to be designed per ASTM C78
— Bottom brackets to be designed according to ASTM C1812The FF-100T-ASTM C1609 bend fixture can be ordered with the cage and two displacement transducers with holders at mid-span.
Testing Standards: ASTM C1609 | ASTM C1812
-
FF-T-ASTM D2344 Bend Fixture
FF-T-ASTM D2344 is a 50kN bend fixture designed with rollers for flat laminate and a special bottom support with free-moving slides for curved beam strength tests.
Testing Standard: ASTM D2344
-
FF-T-ASTM D6415 Bend Fixture
FF-T-ASTM D6415 fixture is a special curved beam strength bend fixture designed to test 90° angled samples of fiber-reinforced polymer-matrix composites according to ASTM D6415. The standard force capacity is 50kN. For all options, contact ADMET.
Testing Standard: ASTM D6415
-
FF-T-ASTM D7774 Bend Fixture
ASTM D7774 calls out for 3-point and 4-point bend tests and we offer both configurations conforming to the standard. The special roller system allows the samples to be fixed between the rollers.
Testing Standard: ASTM D7774
-
FF-T-EN 14651 Concrete Bend Fixture & Assembly
The special EN 14651 flex fixture is a high-capacity three-point bend fixture for concrete testing. ADMET FF-T-EN14651 includes a loading roller assembly that is able to rotate freely, removable pins in rollers with rotating capabilities, and pins used to help with preliminary specimen set up.
The EN14651 bend fixture can be ordered with the cage and a displacement transducer with holders at mid-span as specified by the standard.
Testing Standard: EN 14651
-

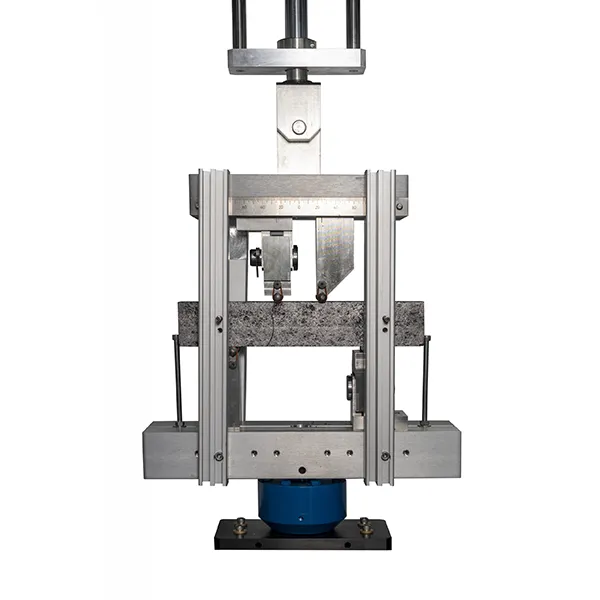

ADMET Custom Bend Fixtures
ADMET has the expertise to design, build, deliver, and implement custom mechanical test equipment including bend fixtures according to customer-specific testing requirements. We have custom-built bend fixtures for specific materials and testing applications. Contact an ADMET Sales Engineer to further discuss your needs.
