• Image of FS-PL-90 peel test fixture

    FS-PL-90 90 Degree Peel Fixture

    Used to measure peel strength, FS-PL-90 features a sliding table that provides steady movement while maintaining a constant peel angle and a wire that pulls the specimen-mounted sliding table laterally. One end of the peel sample is clamped to a top grip (manual vise grip recommended) while the other end is secured on the FS-PL sliding table. The 90-degree peel test is run in the tensile direction. The force measured is the peel, or bond, strength between two surfaces.

    Test Standards: ASTM B571 | ASTM D2861 | ASTM D3330 | ASTM D6252 | ASTM D6862 | DIN EN1939 | EN28510 | ISO 8510-1

    data sheet
    request a quote
  • Image of FS-PL-180 peel test fixture

    FS-PL-180 180 Degree Peel Fixture

    The FS-PL-180 comes with two platens; steel or glass. The specimen is peeled away from the substrate at a 180° angle, the line of separation being perpendicular to the direction of the applied force. The adhesive strength is measured by the force required to peel the adhesive tape continuously from the plate.

    Test Standards: DIN EN1939

    data sheet
    request a quote
  • Image of FS-PL adjustable peel test fixture

    FS-PL-ADJ Adjustable Angle Peel Fixture

    FS-PL-ADJ design features the similar sliding table as the FS-PL-90, however the adjustable angle offers a peel angle of ±30° for peel testing applications that require a variable peel angle. Different options such as wider width is available. Full test setup requires a top grip installed on the machine and the same steps as in the FS-PL-90 operation can be followed to acquire peel strength results.

    Test Standards: ASTM B571 | ASTM D2861

    data sheet
    request a quote

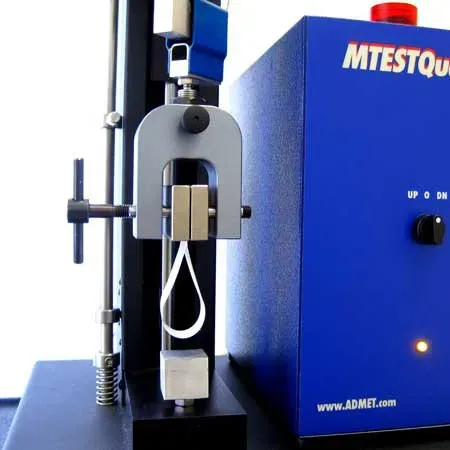

  • Image of FS-LT loop tack test fixture

    FS-LT Loop Tack Test Fixture

    The FS-LT loop tack test fixture designed according to ASTM D6195 comes either with our standard eye end adapter or a rectangular shaped sword adapter. A specimen carrier plate (surface options include glass or stainless steel)  is secured on the loop tack test fixture. During testing, the tape loop must come down onto the platform and cover it so that the edges of the loop slightly overhang from the edges of the platform. The tack force, or the strength of the pressure sensitive adhesive, is measured.

    Note:  A low-capacity manual vise grip is recommended to complete the test setup.

    Test Standards: ASTM D6195 | DIN EN 1719

    request a quote
  • Image of FS-PL ASTM D429 peel test fixture

    FS-PL-ASTM D429 ASTM D429 Peel Fixture

    The adhesion test setup includes the FS-PL-ASTM D429 peel fixture with a specialized design accommodating rectangular specimens and a lower grip (manual vise grip or pneumatic vise grip) in order to determine the adhesion properties of rubber bonded to a rigid material.

    Test Standards: ASTM D429 | DIN53531 | DIN ISO 813 | GOST411

    request a quote
  • Image of FS-CFT climbing drum peel test fixture

    FS-CDT-ASTM D1781 Climbing Drum Peel Fixture

    The climbing drum peel fixture consists of a drum assembly, flexible loading straps mounted on the bottom of the stand and a drum clamp to hold the outer skin against the face of the drum. During a test the loading straps pull on the drum assembly, forcing it to rotate and climb along the length of the Aluminum panel. This motion peels the outer skin away from the core structure. The peel force is measured by the material testing system and the peel resistance between adhesive bonds is calculated. An upper self-closing clamp is required to grip the specimen.

    Test Standards: ASTM D1781 | EN2243 | DIN53295

    data sheet
    request a quote
  • Image of FS-PL ASTM D3167 peel test fixture

    FS-PL-ASTM D3167 Floating Roller Peel Fixture

    The floating roller peel test allows a flexible substrate to be peeled apart gently from the rigid substance. Place one end of the specimen in the roller base of the floating roller peel fixture, use a manual vise or self-tightening grip on the other end to complete the test setup. Test is run in the tensile direction. The angle of separation is effective so that the test works well for substrates that are not as flexible and are unable to be bent to a 90 degree or 180 degree angle.

    Test Standards: ASTM D3167 | DIN53289 | EN 1464 | ISO 4578

    request a quote
