ADMET load cells range from very low forces to higher end forces to test materials of various capacities. Each load cell can be used down to 1% capacity to meet the requirements of ASTM E4. We offer different types of load cells to be used in various test types such as tension, compression, fatigue, and torsion. ADMET load cells ship to your facility wired and chipped and include calibration documentation.
-

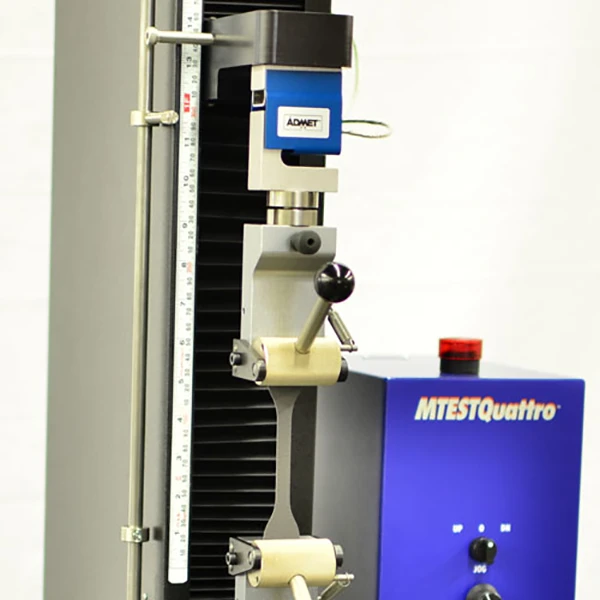

500 Series Low Force Static Load Cells
The 500 Series S-Type load cell is designed for static applications.
Available capacities (lb): 10, 25, 50, 100, 150, 250, 500, 1000
-

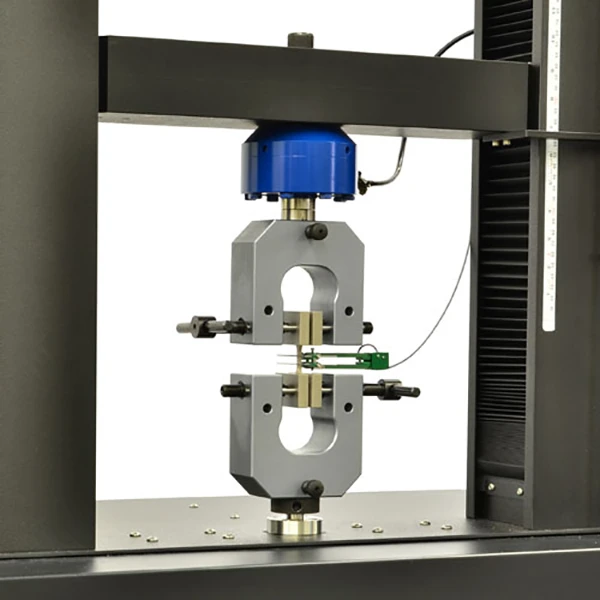

1200 Series High Force Static Load Cells
The 1200 Low Profile load cell is designed for static applications.
Available capacities (lb): 300, 500, 1K, 2K, 5K, 10K, 25K, 50K, 100K
-

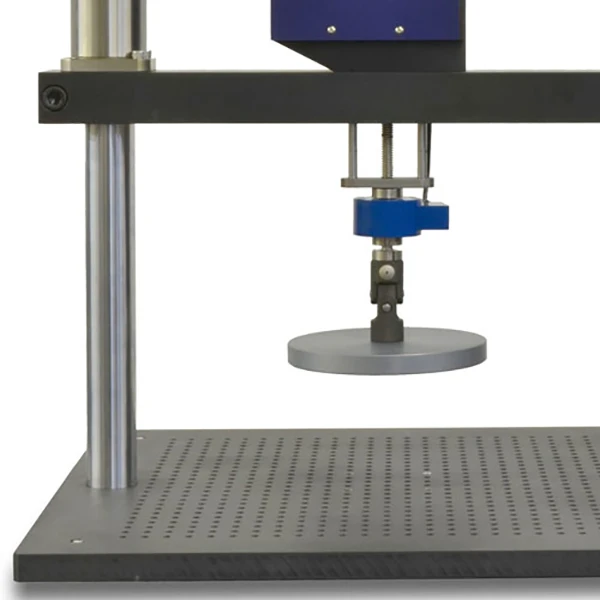

1500 Series Low Force Fatigue Load Cells
The 1500 series is a fatigue rated, eccentric load compensated low profile load cell.
Available capacities (lb): 25, 50, 100, 200, 300
-

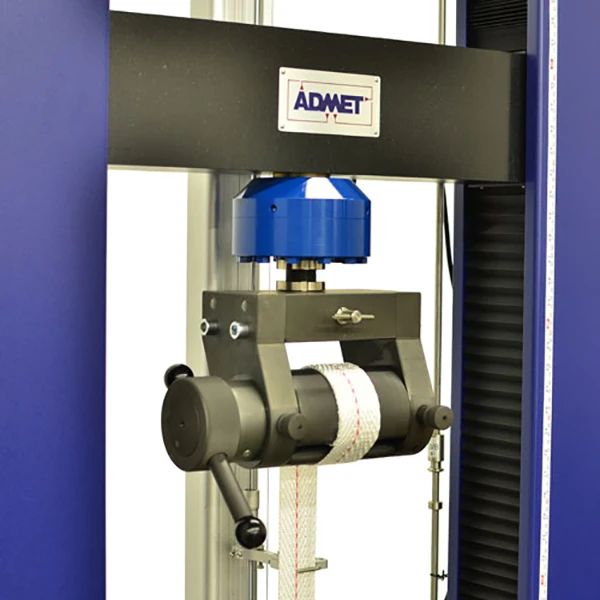

1000 Series High Force Fatigue Load Cells
The 1000 series is a fatigue rated load cell with 300% overload protection, an extremely low moment sensitivity of .1%/in, low zero float (toggle) and a high fatigue life.
Available capacities (lb): 250, 500, 1K, 2.5K, 5K, 12.5K, 25K, 50K
-
600 Series Low Force Overload Protected Static Load Cells
The 600 Series SMT load cell is designed for static applications and offers safe overload protection up to 10 times the capacity.
Available capacities (lb): 1.1, 2.2, 5.6, 11, 22, 56, 112, 225, 450
-

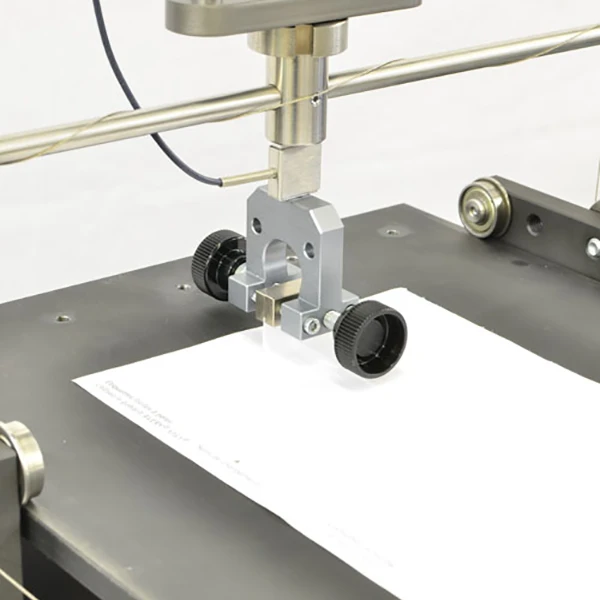

400 Series Ultra Low Force Static Load Cells
The 400 series are very small and accurate load cells with 10X overload protection. These load cells are used for applications such as low force peel, coefficient of friction, and medical applications.
Available capacities (lb): 1, 2, 5
-

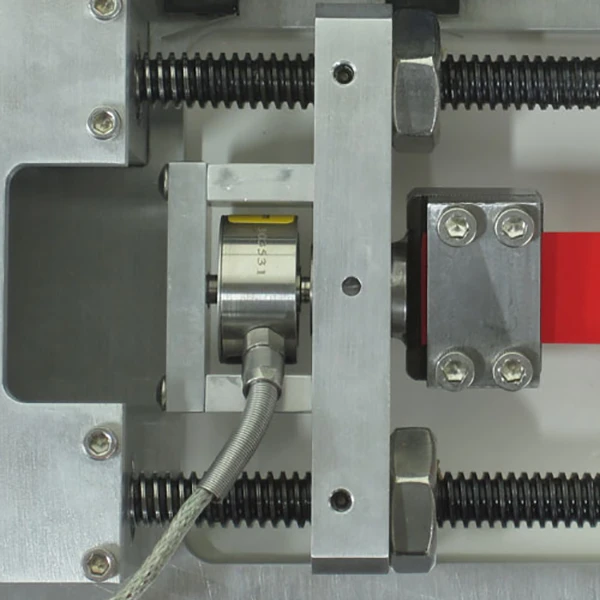

300 Series Micro Test System Static Load Cells
The 300 series miniature load cells are used in ADMET’s miniature universal test systems as well as submersible applications. These rugged miniature load cells are fully welded, constructed of stainless steel and designed to eliminate or reduce to a minimum the effects of off-axis loads.
Available capacities: 10 g, 25 g, 50 g, 150 g, 250 g, 500 g, 1000 g, 5 lb, 10 lb, 25 lb, 50 lb, 100 lb, 250 lb, 500 lb, 1000 lb
-
Pressure Transducer
Pressure transducers can be used with ADMET controllers and indicators on hydraulic machines. ADMET pressure transducers are supplied with a 10ft cable and have a 1/8”-27 NPT hydraulic connection.
Available capacities (PSI): 50, 100, 1K, 3K, 5K, 10K
