eXpert 8000
Axial-Torsion Test Systems Available in Both Static and Fatigue Configurations

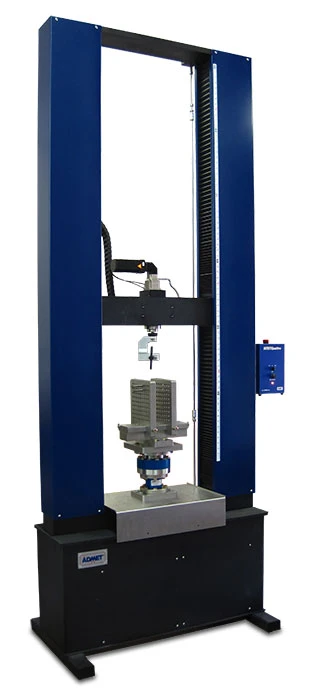

The eXpert 8600 series is a high-performance universal testing machine designed for axial-torsion testing of various materials, including medical implants and biomaterials. With oil-free actuators suitable for clean room environments, the eXpert 8600 offers customizable options to meet specific testing requirements efficiently.
Axial-Torsion Testing Made Easy
The eXpert 8600 is versatile in testing applications, including metallic medical bone screws, intervertebral body fusion devices, and Luer taper fittings. It performs tension, compression, torsion, and multi-axis testing, along with fatigue analysis of various materials. Additionally, it evaluates the adhesive properties of biomaterials and can be configured for clean room operations, making it ideal for sensitive medical devices.
Powerful Control
The eXpert 8600 comes equipped with the advanced MTESTQuattro controller, providing exceptional precision for combined axial and torsional load testing. This powerful control system ensures accurate data acquisition and analysis, making it suitable for a wide range of materials and devices.
Versatile Configuration
Available in both table-top and floor-standing models, the eXpert 8600 offers capacities ranging from 5 kN to 300 kN. Table-top units can be oriented vertically or horizontally, with speeds up to 100 in/min. The system’s wide column spacings and large actuator strokes provide maximum flexibility for various testing scenarios.
High-Precision Measurements
The eXpert 8600 offers high-resolution measurements, exceeding ASTM and ISO accuracy standards. This level of precision ensures reliable and repeatable test results across different testing protocols.
Customization Options

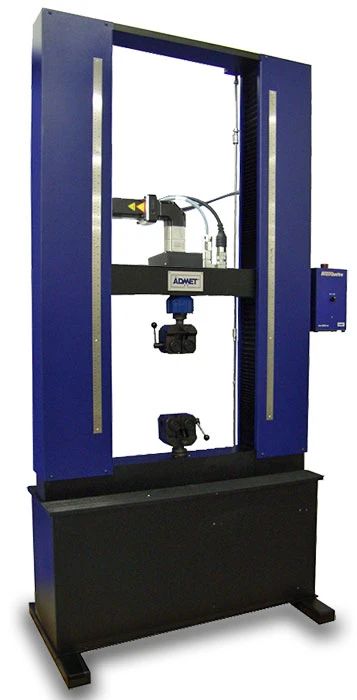

ADMET provides a comprehensive range of axial-torsion grips and chucks to complement the eXpert 8600. The system can be customized with optional features such as a fluid bath with temperature control for simulating physiological environments. Various low-force load and axial-torsion transducers are available to meet specific testing requirements.

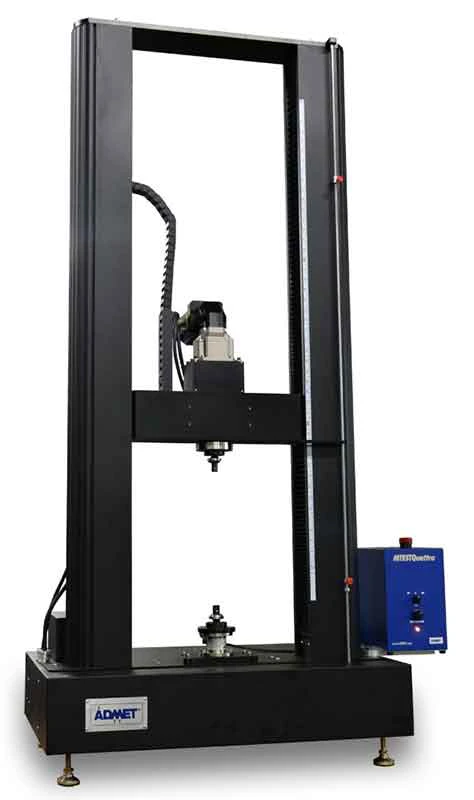

| MODEL | 8601, 8602, 8603, 8611, 8612, 8653, 8950, 8951, 8954 |
|---|---|
| Force Capacity | 50 – 22,481 lbf 0.2 – 100 kN |
| Torque Capacity | 8.9 – 885 in-lbf 1 – 100 Nm |
| Maximum Speed | 2 – 245 in/min (linear) 50 – 6,223 mm/min (linear) 30 – 350 RPM (rotational) |
| Test Rating | Static (8600s) and Fatigue (8900s) |
Advanced Control Systems
ADMET materials testing systems are built around closed-loop servo control, enabling precise regulation of load, position, and strain throughout a test. On advanced systems, that control is paired with a PC-based software environment designed to support complex test execution and detailed data analysis. Users can define custom test sequences, apply advanced load and motion profiles, and precisely manage transitions between ramps, holds, and cyclic segments. High-resolution data acquisition and configurable reporting tools support in-depth evaluation of results and straightforward alignment with ASTM and ISO requirements. This architecture is well suited for research-driven testing, evolving test methods, and applications where flexibility and data quality directly affect outcomes.
MTESTQuattro
MTESTQuattro is the PC-based controller and materials testing software platform behind most ADMET materials testing systems. It delivers precise closed-loop control with an 8 kHz servo update rate, high-resolution data acquisition, and built-in ASTM/ISO test workflows. The blue controller manages real-time machine motion and translates sensor inputs, while the software handles test setup, execution, analysis, and reporting. Together, they enable repeatable tensile, compression, flexural, fatigue, and custom test methods for both routine QA and advanced R&D, making MTESTQuattro a scalable solution for new test systems and retrofit applications alike.
Precise Control
Both control platforms use closed-loop servo control to regulate load, position, and strain throughout a test. High update rates and responsive feedback help maintain stable loading during ramps, holds, and cyclic profiles. This level of control supports accurate, repeatable results across a wide range of materials testing applications. Consistent control behavior also reduces test-to-test variability when running long series or multi-specimen programs.
Intuitive Test Setup
ADMET control systems are designed to streamline test setup while maintaining flexibility. Standard test methods can be configured quickly, and custom test sequences can be built as needed using the testing software. Clear workflows reduce setup time, limit operator error, and support consistent testing across users and shifts. Saved test configurations allow validated methods to be reused without rebuilding procedures for each run.
Powerful Analysis and Reporting
Test data is captured in real time and processed using built-in materials testing software aligned with ASTM and ISO requirements. Results can be reviewed, compared, and exported in standard formats for traceability. This supports audit-ready documentation for both research and quality-focused testing environments. Automated calculations and standardized reports help ensure results are interpreted consistently across projects and teams.
Videos
Long-term Value
With every purchase, ADMET offers free technical and application support for the life of your testing system. Whether you’re faced with a technical challenge or need an outside perspective on test design, we will partner with you to make your testing easy and successful.
Calibration Services
ADMET offers calibration services on new materials testing systems both before shipment and as a field service for any customer in need. Although ADMET utilizes the highest quality equipment available, regular calibration ensures that these components perform as required so the results generated can be trusted with confidence. A list of ADMET’s accredited calibration scope is available via the link.
Retrofit Capabilities
ADMET can extend the life of an aging testing system of any brand with our retrofit services. We often upgrade older systems with modern controllers, advanced software, and new fixturing to meet today’s materials testing needs. This extends lifespan, improves functionality, and improves the lifetime value of your investment. For a list of our retrofit capabilities, visit our retrofit webpage.
