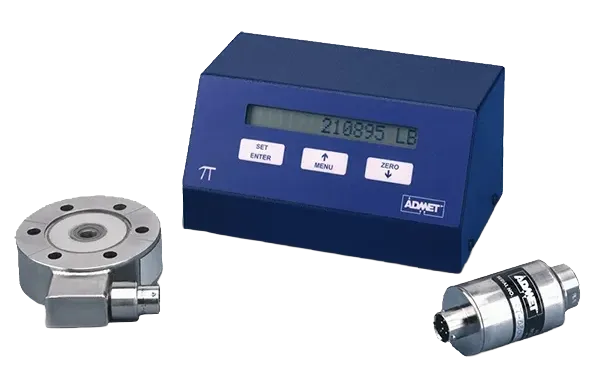

Pi Peak Load Indicator

Peak Load Indicator

Simply connect the Pi indicator with a load cell or pressure transducer to a machine capable of compressing or pulling materials, components, and devices to measure their live and peak load/stress.

The Pi Peak Load Indicator is ADMET’s lowest cost readout. Features include live load and peak load with load rate, stress, and stress rate display available as options. The Pi has multiple calibration points for maximum system accuracy.

Features

Peak load indication
Selectable load engineering units of lbf, N, kN & kgf
ASTM E4 compatible calibration
Programmable load resolution and maximum load range
Hands free operation, no button pushing required of the operator:
- Automatic test reset
- Automatic start of data logging after threshold
- Automatic sample break detect
Analog load input channel for either a pressure transducer or a load Cell

Additional Pi-R Features:

Rate of load indication

Additional Pi-XS Features:

Peak load or stress values
Rate of load or rate of stress values
Selectable stress engineering units of psi, kPa, MPa and Kg/cm²
Selectable specimen geometry (dimensions are preset)
Pi-XS can be used with GaugeSafe Data Exchange Software:
- Upload stored test results to a Windows computer
- Save test results to memory
- Export test results as CSV file for spreadsheets
- Print the results report

Download Pi Peak Indicator Brochure Download GaugeSafe + Pi Peak Indicator Brochure

Request a Quote

	Pi	Pi-R	Pi-R
Live Load/Peak Load
Load Rate
Live Stress/Peak Stress
Stress Rate
Select cylinder, cube, or beam specimen geometries
Store up to 400 tests to memory and upload to computer using GaugeSafe
