Determining Tensile Test Offset Yield Strengths using Extensometer

Home / Testing Guides / Determining Tensile Test Offset Yield Strengths using Extensometer

Typical points of interest when tensile testing a material include:
ultimate tensile strength or peak stress; modulus of elasticity, offset yield strength, which represents a point just beyond the onset of permanent deformation; and elongation at break.

The modulus of elasticity is calculated as the slope in the linear elastic region of the stress-strain curve. The linear elastic region is prior to the proportional limit (see point A – Figure 1). Beyond the proportional limit, the material undergoes permanent plastic deformation.

The offset yield strength is reported as a stress (psi, MPa, etc) and is defined as the point where a line drawn parallel to the modulus line intersects the stress-strain curve (see point B and line XB – Figure 1). Offset distance, 0X, in Figure 1 is the product of sample gauge length and percent offset. Offset distance, 0X, for example would be 0.004 in for a 2 in gage length sample at 0.2% offset (0X = 2 in x 0.002 = 0.004 in).

Successful reporting of the offset yield value is therefore dependent on how well the testing program has determined the modulus of elasticity.

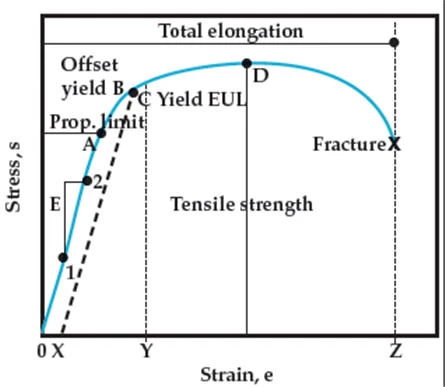

Stress-strain graph
Figure 1 – ENGINEERING STRESS-STRAIN CURVE

Tensile tests sometimes produce stress-strain curves that do not follow the “classic” shape shown in Figure 1. As a result, the calculated slope of the modulus line may be incorrect; leading to an invalid offset yield strength.

Reasons for invalid offset yield strength values:

  • Non-linearities and or discontinuities in the linear elastic region of the stress-strain curve. These anomalies may be the result of misapplication of the extensometer to the sample and/or extensometer slippage during the test.
  • The extensometer collecting strain data was removed from the test specimen before sufficient strain data could be collected to satisfy the specified offset yield.
  • Specimen slipping in grips.

See images below for an example of discontinuity causing a bad offset yield value and a fix for this problem:

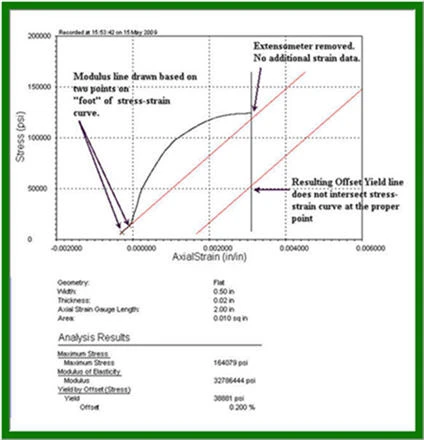

Graph showing bad yield characteristics
Figure 2 – Extensometer slipping during the initial loading causing a distinct change in slope

Things you can do with this type of curve to get valid offset yield strength (see Figure 3):

  1. Raise your data logging threshold so that the discontinuity in the initial part of the stress-strain curve is not reported.
  2. Select points for modulus calculation in the linear part of the curve.

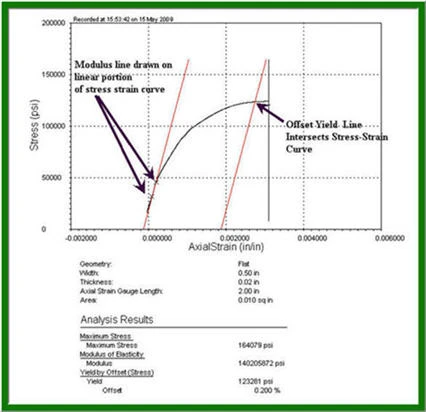

Graph showing good yield characteristics
Figure 3 – Logging threshold was raised to eliminate discontinuity

By: Nicholas Schaulsohn | Published on: January 15, 2010 | Last Updated: January 6, 2026
