Fatigue Testing Machines

Home / Testing Machines / Fatigue Testing Systems

ADMET fatigue testing machines are built for high-cycle and low-cycle fatigue applications where accuracy, repeatability, and long-term stability matter. Supporting axial, flexural, torsional, and multi-axis fatigue testing, our systems provide precise control of load, displacement, strain, and waveform over millions of cycles—replicating real-world fatigue conditions with confidence.

Configured by engineers and designed to evolve, ADMET fatigue systems support metals, polymers, composites, biomedical materials, and components while meeting ASTM, ISO, and EN standards. Whether generating S-N data, evaluating cyclic durability, or upgrading a legacy system, ADMET delivers clean data, reliable uptime, and lasting value—so your system won’t be obsoleted.

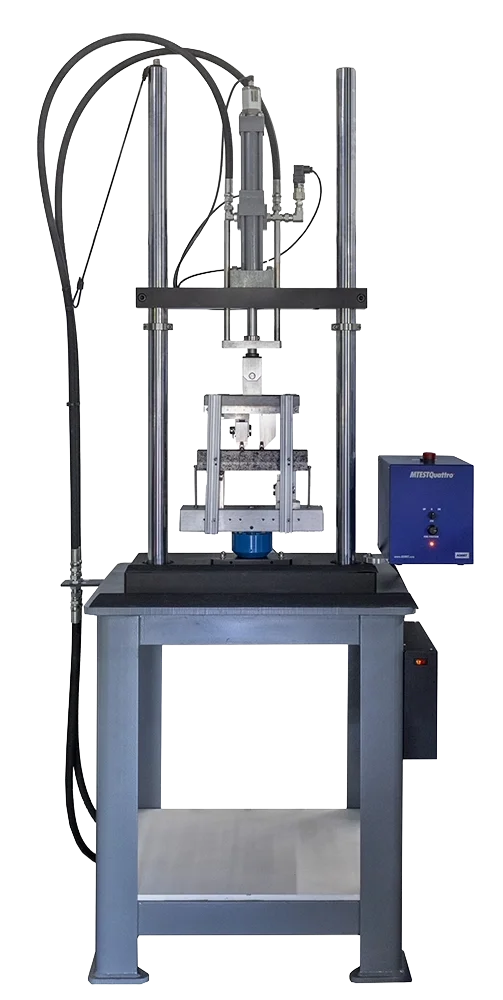

eXpert 1900

Servohydraulic Fatigue Testing Machine

The eXpert 1900 series servohydraulic universal testing machines are ideal for testing metals, composites, medical devices and implants, concrete, webbing, and other materials at very high load capacities without breaking your budget. Each frame employs strain gauge load cells for direct measurement of force. With no need to compensate for piston friction and other non-linearities, these frames offer exceptional accuracy and precision while reducing long-term calibration and service costs.

Up to 600 kN; Dynamic Fatigue Tests to 15 Hz
Simple, low maintenance design
Performs tension, compression, peel, and bend tests
Exceeds ASTM and ISO accuracy standards

More Information

eXpert 5900

Modular Fatigue Testing Machine

The eXpert 5900 series tabletop dynamic testing machine is a compact, quiet, and clean electrodynamic testing system for determining the durability of materials and components in tension, compression, or flexure. eXpert 5900 series machines perform fatigue testing up to 15Hz in frequency and provide up to 14kN in load capacity. Custom designs are also available.

Detachable actuator
Vertical and horizontal orientations, single or dual column
Performs tension, compression, peel and bend tests
Exceeds ASTM and ISO accuracy standards

More Information

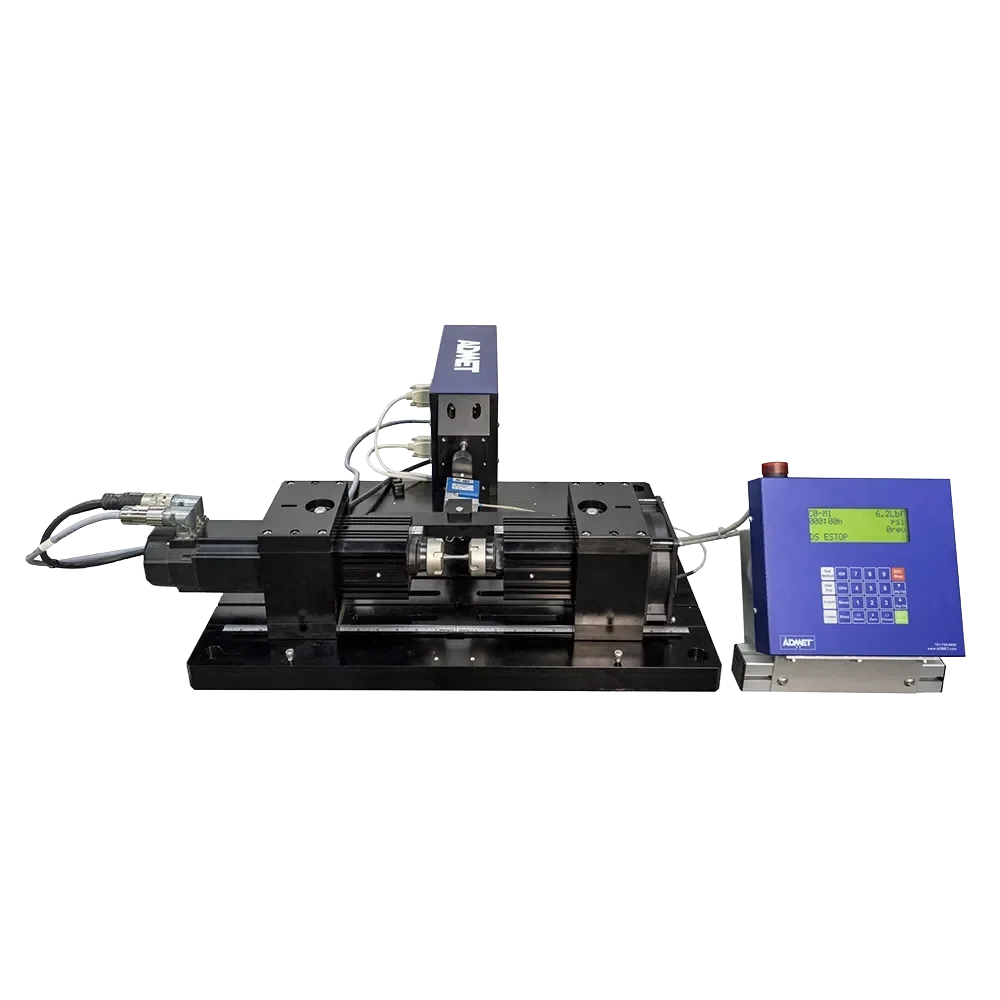

eXpert 9300

Rotating Beam Fatigue Testing Machine

The ADMET eXpert 9300 series Rotating Beam Machine performs fully reversed fatigue tests on metallic samples at frequencies up to 100 Hz. It is a low cost compact table top unit compliant with the ISO 1143 Rotating Bar Bending Test Specification and is ideal for generating data necessary for constructing S-N (stress-life) diagrams.

Uses four-point beam loading condition to provide a consistent bending stress across the gauge section of the specimen
eP2 Controller for system control and cycle counting
Sample Break detection
Safety shield with interlock switch
Multiple collet sizes available depending on the specimen geometry

More Information
