In this post, we will show you how to set up MTESTQuattro to set specimen geometry for o-ring specimens. O-ring testing can be accomplished with an eXpert 7600 single column testing system and a set of specialized o-ring tensile fixtures.

With MTESTQuattro running, navigate to the specimen tab.

Selecting Geometry

For Flat O-Rings:
- In MTESTQuattro, go to the Specimen tab of the active test procedure.
- Select Flat O-Ring as geometry type (Figure 1).

MTESTQuattro geometry selection screen — Figure 1 – Selecting Flat O-Ring Geometry

For Round O-Rings:
- In MTESTQuattro, go to the Specimen tab of the active test procedure.
- Select Round O-Ring as geometry type (Figure 2).

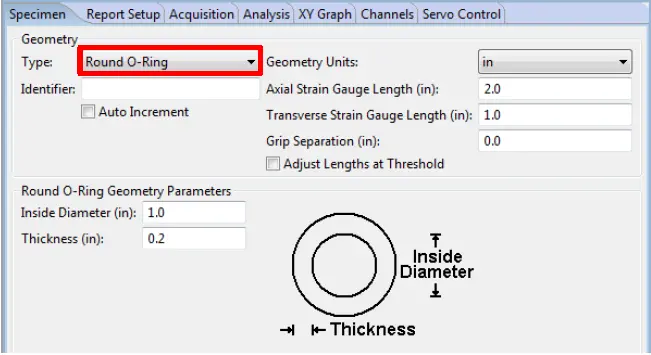

Selecting round geometry in MTESTQuattro — Figure 2 – Selecting Round O-Ring Geometry

Selecting Analysis

In MTESTQuattro, go to the Analysis tab of the active test procedure.
Select User as the analysis suite.
Highlight O-Ring and click Select.
O-Ring should now be listed in the selected analysis section.

Enabling O-ring analysis in MTESTQuattro — Figure 3 – O-Ring Analysis Enabled

Running a Test

Measure specimen
Update specimen dimensions in MTESTQuattro if necessary (Figure 4).
Perform test.
After the test has completed, the Tensile Strength (psi) and Elongation (%) will be calculated.

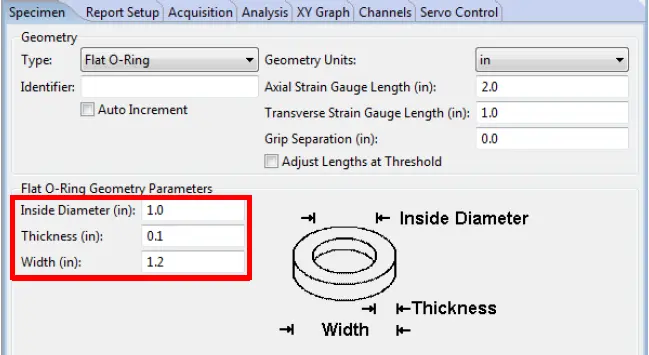

Updating specimen geometry in MTESTQuattro — Figure 4 – Updating Specimen Geometry
